The RV Series is a heavy duty mechanical pinch valve with housing options in either cast iron, steel, welded steel or welded stainless steel. Coupled with flexible actuator options from manual handwheel, to single / double-acting pneumatic cylinder, spring-return pneumatic cylinder, hydraulic cylinder, and electric actuator.
Valve Configuration
● Available in the nominal diameters of DN25 to DN500.
● Designed with a flange connection complying to DIN EN 1092 PN10 or PN16 standard, or ISO25 or ISO40. Can also be made with a flange connection complying with ANSI B 16.5-150lbs, if required.

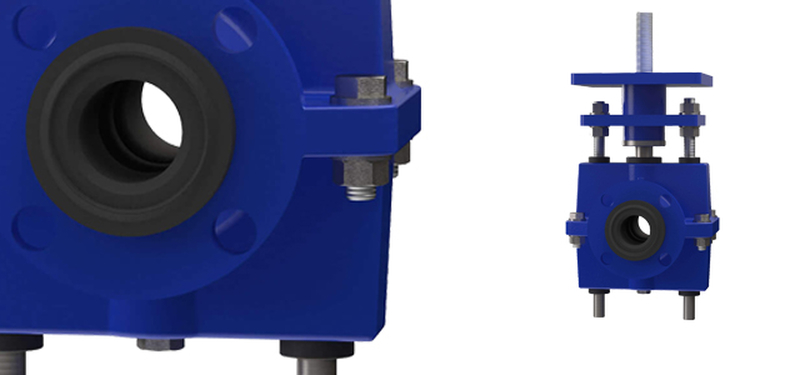

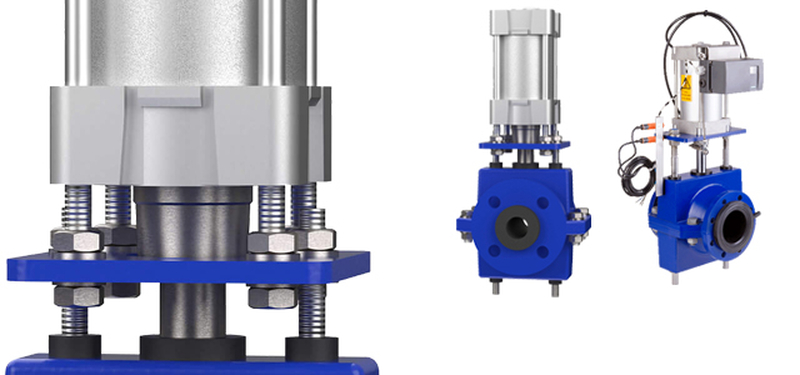

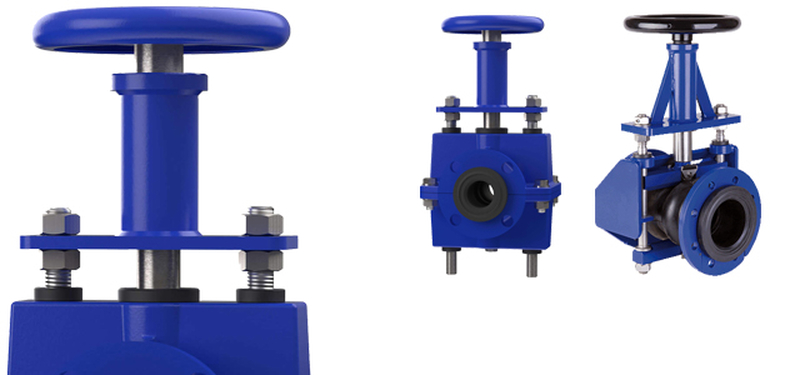

● Comes with various actuator options from manual handwheel, double-acting / single-acting / spring return pneumatic cylinder, hydraulic cylinder, and electrical actuator.
Valve Material Configuration
● Cast Iron
● Steel
● Welded Steel
● Welded Stainless Steel
Documentation
Datasheet: RV series Datasheet (797 kb)
Installation & Service Instructions: Installation & Service Instructions for mechanical pinch valves (2.56 Mb)
