OV Series Pinch Valves (Lightweight)

The OV Series pinch valve is the best control and manual type pinch valve suitable for various regulating and dosing applications boasting reliable operation coupled with lightweight aluminium construction.

OV Series - Type PA2

Mechanically-operated pinch valve with double-acting pneumatic cylinder and PN10/16 flange connection. Sizes from DN65 - 250.

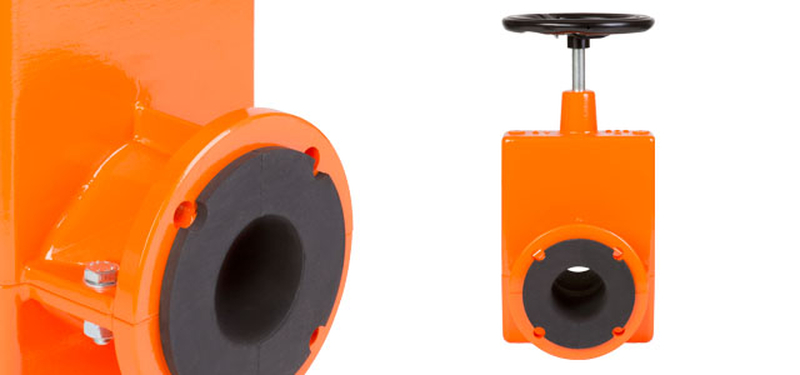

OV Series - Type M

Hand-operated / Manual pinch valve with aluminium body and PN10/16 flange connection. Sizes from DN15 - 250.

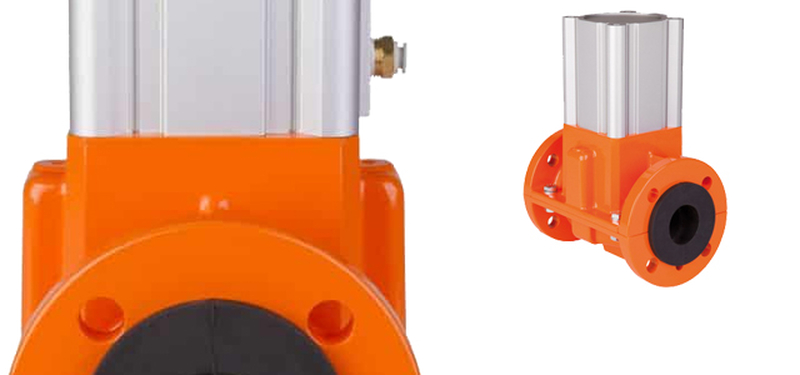

OV Series - Type P

Mechanically-operated pinch valve with double-acting pneumatic cylinder, aluminium body and PN10/16 flange connection. Sizes from DN15 - 50.

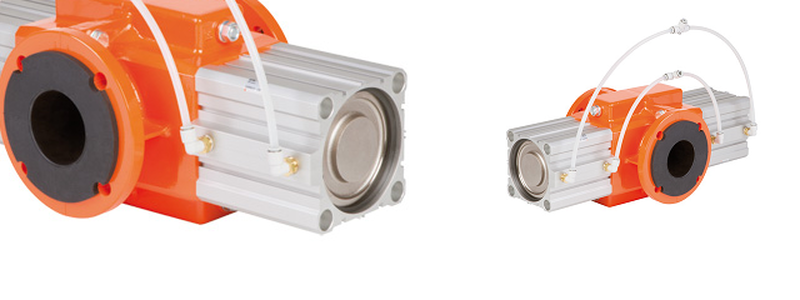

OV Series - Type P2

Mechanically-operated pinch valve with double-acting pneumatic cylinder and PN10/16 flange connection. Sizes from DN65 - 250.

Valve Configuration

● Available in the nominal diameters of DN15 to DN250.

● Designed with a flange connection complying with UNI 2223 PN10/16 as standard.

● Comes with a manual handwheel. Can be used as shut off and control / regulating valve.

● Comes with control options using either single or double acting pneumatic cylinders.

Valve Material Configuration

● Aluminium body and flanges.

Documentation

Datasheet: OV series Datasheet (2 Mb)

Operating Instructions: Operating Instructions for mechanical pinch valves (180 Kb)

Maintenance / Repair Instructions: OV Series, Type M (339 Kb)

Maintenance / Repair Instructions: OV Series, Type P-PA (352 Kb)

Maintenance / Repair Instructions: OV Series, Type P2-PA2 (278 Kb)

List of Components: OV Series, Type M (272 Kb)

List of Components: OV Series, Type P-PA (278 Kb)

List of Components: OV Series, Type P2-PA2 (278 Kb)

Valve Re-sleeving and Assembly Videos
